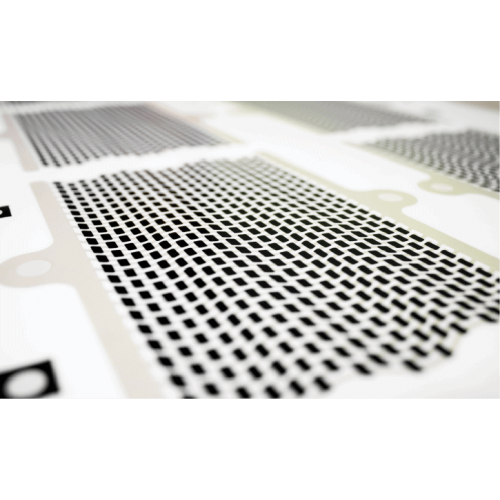

PTC Positive Temperature Coefficient Heater Stack Up

Top Cover Layer

The TPU cover film is added for extra protection.  Covers can be designed as clear or include customized graphics like logos.

Resistive Carbon Elements

Specialty resistive carbon ink is used as the heating element.

Conductive Silver Traces & BusBar System

The silver traces and bus bar system are used for sending electricity and heat to the rest of the heater.

Base PET Substrate

PET is the best substrate for PTC heater constructions. It allows for some flexibility but not stretching.

The back can also have a hot-melt adhesive for easy application to fabric garments.

Fixed-Resistance Heater Stack Up

Top Cover Layer

The TPU cover film is added for extra protection.  Covers can be designed as clear or include customized graphics like logos.

Conductive Silver Traces & BusBar System

The silver traces and bus bar system are used for sending electricity and heat to the rest of the heater.

Resistive Elements

Specialty resistive carbon, silver, or blended ink is used as the heating element.

Base TPU Film

TPU is most common for its ability to stretch and conform to its user.

The back can also have a hot-melt adhesive for easy application to fabric garments.

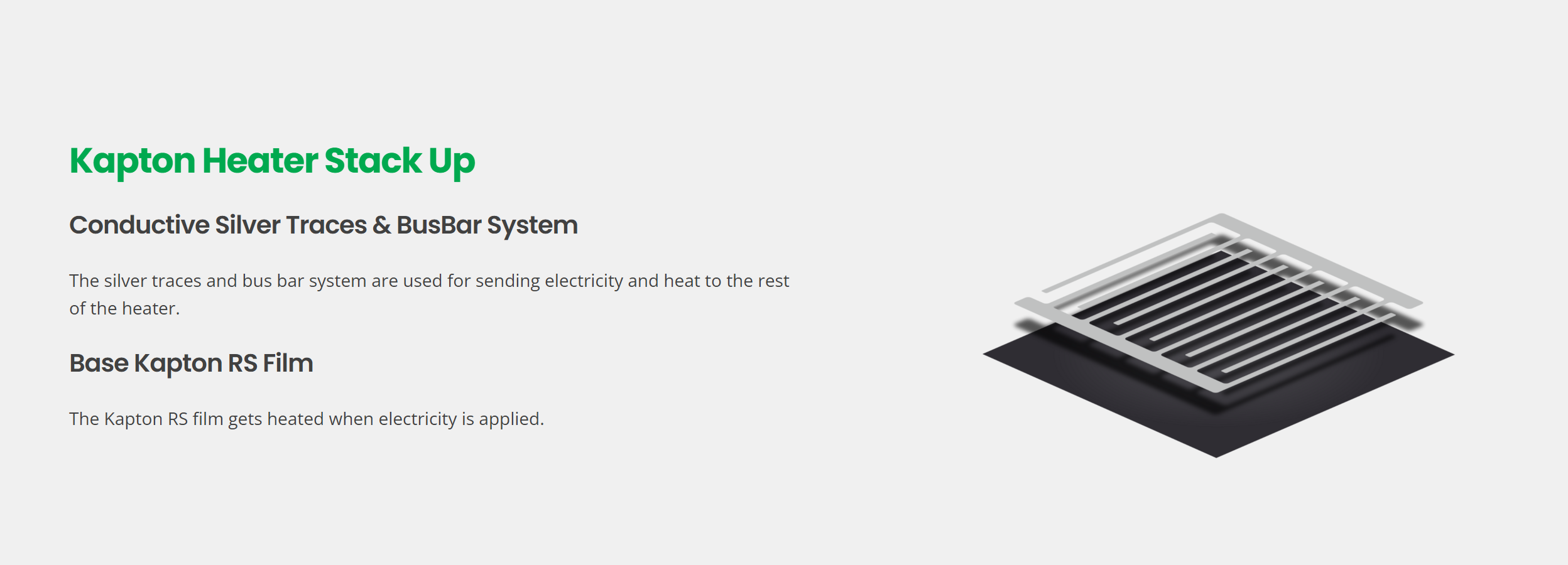

Kapton Heater Stack Up

Conductive Silver Traces & BusBar System

The silver traces and bus bar system are used for sending electricity and heat to the rest of the heater.

Base Kapton RS Film

The Kapton RS film gets heated when electricity is applied.
